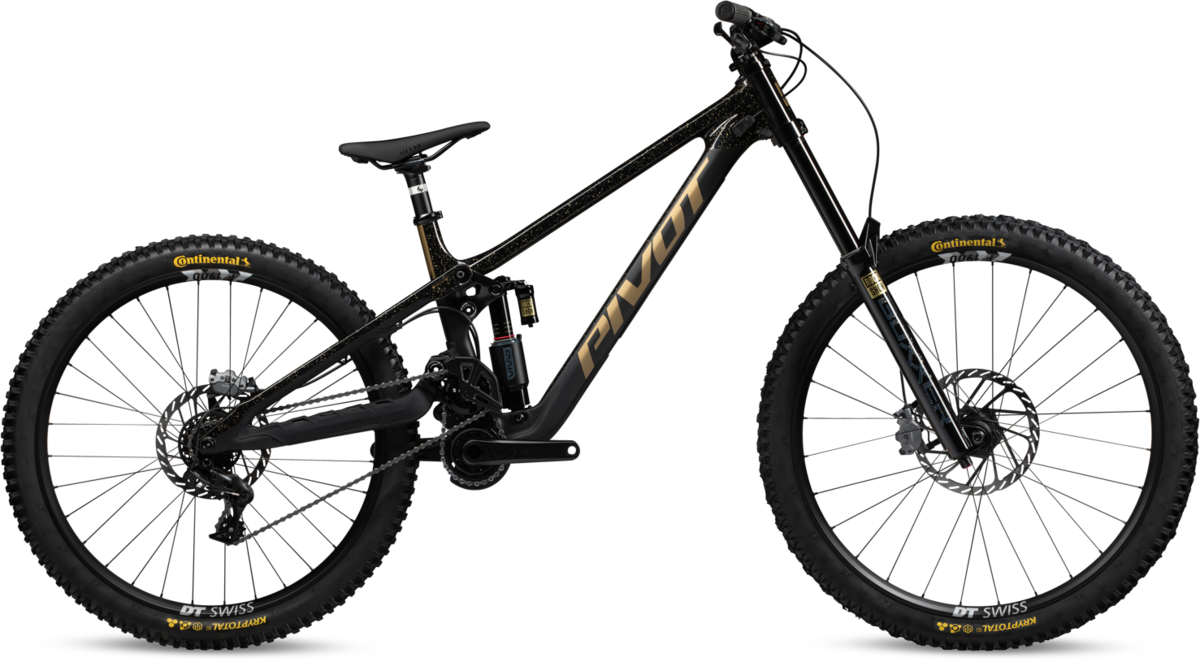

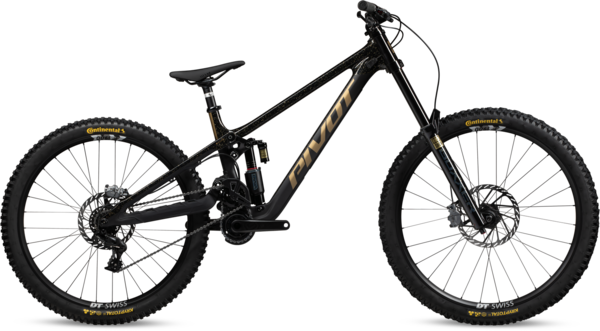

Pivot Cycles Phoenix V5 Ride GX DH - MX Alloy Wheels
Details
Ordained for dominance
Developed with suspension legend Dave Weagle, the cutting-edge 6-bar design (DW6) provides 210mm of mid-high pivot rear travel, delivering unmatched control and stability on the most challenging descents. The striking (and incredibly quiet) dual-chain drive boosts efficiency while the six-bar linkage delivers insane square-edge bump compliance, letting the bike roll over obstacles with ease and allowing you to maintain momentum and power through rough terrain.
Race Drive, Podium Proven
The Phoenix’s performance was honed through real-world race experience with the Pivot Factory Racing team. PFR athletes rigorously tested the prototype for over a year in the most demanding conditions, providing invaluable feedback that helped shape the production Phoenix into a true podium contender.
The Prototype Process
The Phoenix began its life as a carbon lugged prototype. A carbon frame test bed allowed us to develop faster, iterate more efficiently, and ultimately push our prototype as close as possible to the finished product. The result is a bike that is both radically new and elegantly refined.
Product Details
- All-new mid-high pivot DW6 linkage design
- Dual-idler pulley & dual-chain drivetrain
- Mixed-wheel setup
- Adjustable Geometry via Upper Link Mounted Flip-Chip
- Adjustable Progression via Flip-Chip Lower Shock Mount
- Injection Molded Full Downtube & Chainstay Protection
- Fork-Stop Integrated Cable Ports
- Factory Series Float X2 on Pro Builds
- RockShox Vivid on Ride Builds
- 210mm Rear Wheel Travel
- 203mm Factory Series Fox 40 on Pro Builds
- 200mm RockShox Boxxer on Ride Builds
- Continental Kryptotal DH casing tires
| Frame Size | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Seat Tube Length (C-T) (cm) | 41 | 41 | 41 | 41 |
| Top Tube Length (Eff.) (cm) | 57.8 | 60.3 | 62.3 | 65.8 |
| Head Tube Length (cm) | 10.6 | 10.6 | 10.6 | 10.6 |
| Head Tube Angle | 62.5° | 62.5° | 62.5° | 62.5° |
| Seat Tube Angle (Eff.) | 77.3° | 77.3° | 77.3° | 77.3° |
| Chain Stay Length | 44.3 | 44.3 | 44.3 | 44.3 |
| Bottom Bracket Height | 34.9 | 34.9 | 34.9 | 34.9 |
| Bottom Bracket Drop | 0.85 | 0.85 | 0.85 | 0.85 |
| Standover Height | 69.7 | 70.2 | 70.2 | 70.2 |
| Wheelbase | 125.3 | 127.8 | 129.8 | 133.3 |
| Stack | 63.5 | 63.5 | 63.5 | 63.5 |
| Reach | 43.5 | 46 | 48 | 51.5 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| S1 | 1,63 - 1,76 m | 5‘4“ – 5‘9" |
| S2 | 1,70 - 1,81 m | 5‘7" – 5‘11" |
| S3 | 1,78 - 1,91 m | 5‘10“ – 6’3” |
| S4 | 1,86 m + | 6’1”+ |
Specs
| Frame | Phoenix |
|---|---|
| Fork | RockShox Boxxer Base 29”, 52mm offset, Charger 3 RC - 200mm |
| Rear Shock | RockShox Vivid Base |
| Wheels | DT Swiss F1900 w/ DT Swiss 370 hub - Mixed 20x110 F/12x157 R |
| Tires |
Front: Continental Kryptotal-F 29" x 2.4" 3C, Super Soft, DH Casing Rear: Continental Kryptotal-R 27.5" x 2.4" Super Soft, DH Casing |
| Crankset | Praxis DH9-73 M30 165mm (w/ Pivot 27T Ring) |
| Shifters | SRAM GX, 7-Speed |
| Rear Derailleur | SRAM GX DH 7-speed |
| Cassette/Freewheel | SRAM PG720 DH, 11-25t |
| Chain | SRAM PC1110, 11-Speed |
| Brakes | SRAM Maven Bronze Stealth |
| Rotors |
SRAM HS2 - 220mm SRAM HS2 - 200mm |
| Handlebars | Phoenix Team Low Rise Alloy - 800mm |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team DH - 45mm |
| Headset | Pivot Precision Sealed Cartridge - DH |
| Seatpost | Phoenix Race Aluminum |
| Saddle | Phoenix WTB Team High Tail Trail |
| Pedals | Sold Separately |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black Gold / S1 / 29-inch front / 27.5-inch rear | 196338217057 | 00PHXV5MXAGXDH-BGDS1STDVN |
| Black Gold / S2 / 29-inch front / 27.5-inch rear | 196338217033 | 00PHXV5MXAGXDH-BGDS2STDVN |
| Black Gold / S3 / 29-inch front / 27.5-inch rear | 196338217019 | 00PHXV5MXAGXDH-BGDS3STDVN |
| Black Gold / S4 / 29-inch front / 27.5-inch rear | 196338217071 | 00PHXV5MXAGXDH-BGDS4STDVN |
| Red Mint / S1 / 29-inch front / 27.5-inch rear | 196338217132 | 00PHXV5MXAGXDH-RMTS1STDVN |
| Red Mint / S2 / 29-inch front / 27.5-inch rear | 196338217118 | 00PHXV5MXAGXDH-RMTS2STDVN |
| Red Mint / S3 / 29-inch front / 27.5-inch rear | 196338217095 | 00PHXV5MXAGXDH-RMTS3STDVN |
| Red Mint / S4 / 29-inch front / 27.5-inch rear | 196338217156 | 00PHXV5MXAGXDH-RMTS4STDVN |
