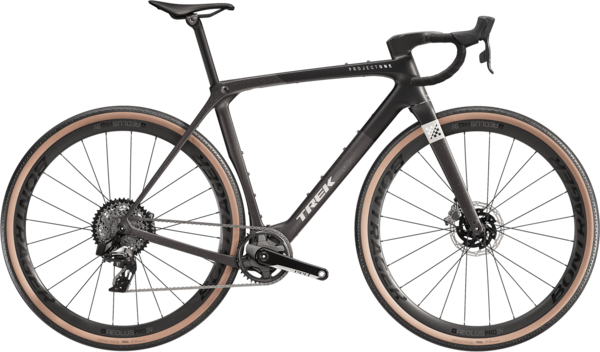

Trek Checkmate SLR 8 AXS
Details
Checkmate SLR 8 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver the performance you crave on race day, Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a 1x12 previous generation SRAM RED XPLR AXS wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.
IT'S RIGHT FOR YOU IF…
You want to test your mettle at gravel racing's most epic events. You need a bike that delivers aerodynamics and light weight, but not at the cost of your comfort. Performance matters to you, and you want performance components to elevate your ride, like a previous generation SRAM RED XPLR AXS wireless electronic drivetrain.
THE TECH YOU GET
A lightweight and aerodynamic 800 Series OCLV Carbon frame with IsoSpeed comfort technology and plenty of mounts to carry race-day essentials. Bontrager Aeolus Pro 3V carbon wheels and a Trek Aero RSL carbon bar/stem that keep your ride light and nimble. Plus, a previous generation 1x12 SRAM RED XPLR AXS drivetrain with wireless shifting that's built for rougher roads.
THE FINAL WORD
If gravel race days are in your future, reach for Checkmate SLR 8 AXS. This lightweight gravel race rig is built to kick up dust on the long road, and deliver aero gains and comfort on the way. It combines new Gravel Race geometry with comfort-focused features, like IsoSpeed vibration-damping tech, to keep you at your prime from start to finish line.
WHY YOU'LL LOVE IT
- You're after a gravel bike that's made to soar right off the starting line with Full System Foil aero tube shapes and an aero-yet-ergonomic one-piece bar/stem
- Comfort isn't kicked to the side, thanks to road-smoothing IsoSpeed tech and clearance room for tires up to 45mm wide (as measured)
- New Gravel Race geometry keeps you tucked out of the wind and poised for the attack without compromising the fit you need for comfort through long miles
- A premium, ultra-light 800 Series OCLV Carbon frame helps you save energy by reducing road chatter
- It comes equipped with plenty of mounts to add Adventure Bags and carry all your race-day essentials
| Frame size | X-Small | Small | Medium | Medium/Large | Large | XL |
|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat tube (cm) | 37.3 | 41.4 | 45.5 | 50 | 53.7 | 58.3 |
| Seat tube angle | 73.9° | 73.9° | 73.7° | 73.5° | 73.6° | 73.7° |
| Head tube length (cm) | 9.1 | 10.6 | 12.6 | 15 | 17.4 | 19.9 |
| Head angle | 71.0° | 71.3° | 71.5° | 71.7° | 72.0° | 72.4° |
| Effective top tube (cm) | 53.2 | 54 | 55.5 | 57 | 58.1 | 59.2 |
| Bottom bracket height (cm) | 8 | 8 | 8 | 8 | 8 | 8 |
| Bottom bracket drop (cm) | 42.6 | 42.6 | 42.6 | 42.6 | 42.6 | 42.6 |
| Chainstay length (cm) | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| Offset (cm) | 7.2 | 7 | 6.8 | 6.7 | 6.5 | 6.2 |
| Trail (cm) | 100.3 | 101.1 | 102.2 | 103.5 | 104.5 | 105.4 |
| Wheelbase (cm) | 71.8 | 74.7 | 78.2 | 81.6 | 85.1 | 88.6 |
| Standover (cm) | 38 | 38.5 | 39.2 | 39.9 | 40.4 | 40.9 |
| Frame reach (cm) | 52.5 | 54 | 56 | 58.4 | 60.8 | 63.3 |
| Saddle rail height min (w/short mast) (cm) | 54.6 | 58.7 | 62.8 | 66.8 | 72 | 75.1 |
| Saddle rail height max (w/short mast) (cm) | 61.1 | 65.2 | 69.3 | 73.3 | 78.5 | 81.6 |
| Saddle rail height min (w/tall mast) (cm) | 58.6 | 62.7 | 66.8 | 70.8 | 76 | 79.1 |
| Saddle rail height max (w/tall mast) (cm) | 65.1 | 69.2 | 73.3 | 77.3 | 82.5 | 85.6 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small (49cm) | 143 - 158 cm | 4'8" - 5'2" |
| Small (49-52cm) | 158 - 162 cm | 5'2" - 5'4" |
| Medium (52-54cm) | 162 - 173 cm | 5'4" - 5'8" |
| Medium/Large (56cm) | 173 - 179 cm | 5'8" - 5'10" |
| Large (58cm) | 179 - 188 cm | 5'10" - 6'2" |
| X-Large (61cm) | 188 - 213 cm | 6'2" - 7'0" |
Specs
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
|---|---|
| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels |
Front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle Rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle |
| Tires | Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Crankset | SRAM RED AXS w/ power meter, 40T, DUB, 165-175mm length |
| Shifters | SRAM RED eTap AXS, 12 speed |
| Rear Derailleur | SRAM RED XPLR eTap AXS, 44T max cog |
| Cassette/Freewheel | SRAM XG-1271, 10-44, 12 speed |
| Chain | SRAM RED D1, 12 speed |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
| Stem | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70-110mm stem length |
| Seatpost | KVF aero carbon seatpost, 5mm offset, 280mm length |
| Saddle | Bontrager Aeolus Pro, carbon rails, 145mm width |
| Battery | SRAM eTap battery pack (with charger) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Trek Black/Matte Deep Smoke / Medium/Large / 700c | 197216144571 | 5331273 | CHE523245151 |
